Wall Washer Lighting Removes Shadows and Provides Even Lighting for Enhanced Visibility

Wall-washing is a lighting design application in which the lighting practitioner sets a lighting source either in or on the ceiling plain or on the floor at a greater distance from the wall the luminaire(s) is to illuminate. This location of the wall-wash luminaire(s) will cause the illumination to spread along the wall in a smooth pattern from top to bottom or in reverse. This evenly distributed light creates what is the wall-wash effect. This effect removes shadow along the wall and decreases imperfections along the wall’s surface, creating an evenly illuminated wall from top to bottom.

The wall-washing technique will make areas such as halls and narrow rooms seem larger and more expansive. The wall-washing effect is achieved by evenly spacing the luminaries in or on the ceiling plain or the floor. The separation of the luminaires and the distance from the wall will determine the luminance of the lit wall. When professionally designed, the wall wash effect will eliminate shadows and imperfections as the light source creates smooth illumination on the wall. Manufacturers of wall-wash luminaires create three-dimensional charts based on the luminaires’ photometry to support the lighting practitioner to correctly position the light sources to create the best desired wall-washing effect.

Wall-washing vs. wall-grazing

When deciding to illuminate walls, it is essential to understand the difference between wall washing and wall grazing. When grazing a wall, the luminaires are closer to the wall; thus, with a tighter beam angle, textures on the surface will become more enhanced. Wall-washing will enhance the textures of stone, stucco, and textured details. It is essential to understand that wall-washing and wall-grazing are not the same technique and have quite different effects on light application.

The benefits of wall-washing an environment are that it will make the space look and feel more open. This wall-washing technique is excellent in achieving a more illuminated open atmosphere. The market has two main wall-washing luminaires: an LED wall-wash high-lumen output unit and the LED linear lighting lower power product. The high-lumen power LED wall-washer will focus on ceiling heights and distances from the wall, and the LED will be linear for shorter heights and for making illuminated outlines. Wall-wash units are for interior and exterior spaces and are available as waterproof when required.

Using color and temperature in wall washing lighting designs

The ability of LEDs to change their (CCT) Correlated Color Temperature and their color hue by mixing with (RGB) red, green, and blue, there is no limit to the ability of these wall-wash luminaires to create any desired atmosphere. Building occupants can generate a sense of comfort and warmth using settings from 2700K to 3000K and cool white lights 4000K-5000K to create a brighter and cleaner feel. This CCT control ability gives the occupants of the residential, hospitality, and medical spaces comfort and function. Other lighting applications for LED wall washer luminaires include exterior wall-washing for commercial buildings, retail applications for building walls, landscape lighting, signage, wayfinding, the atmosphere in restaurants, bars, nightclubs and dance halls, and other entertainment spaces.

Five types of wall-washing applications:

1. Uplighting is when the lighting practitioner installs the light source at the wall base and focuses the illumination upwards. This technique creates an illumination that enhances the textures and details of the wall, making the wall appear to be taller. In rooms with high ceilings, this adds a feeling of volume. In exterior applications, wall-washing will direct visual interest to a building’s architecture.

2. Downlighting is when the lighting practitioner installs the light source above the wall and focuses the illumination downwards. This downward wash of light casts shadows and is dramatic. Located in entryways, hallways, and stairwells, it can create an atmosphere of size, and when moving outdoors, it can illuminate landscaping, trees, fountains, and statues.

3. A technique known as Cross-Lighting is when the lighting practitioner lights from two or more directions. This multi-illumination reduces shadows while still showing textures and wall details. The cross-lighting technique is used in larger spaces seen in commercial environments, museums, art galleries and churches,

4. Wall-grazing, different from wall-washing, is involved when the lighting practitioner takes the luminaire at a low angle and aims it up the wall. This effect creates a low-intensity beam of light that emphasizes depth and interest in a wall section—used residentially to create a warm and inviting feeling to the illuminated room.

5. Wall–washing is the lighting practitioner’s use of a light source that creates a broad, even illumination. The effect here is to achieve a more open room by evenly lighting walls to eliminate shadows, wall textures, or imperfections. Rooms look brighter and more welcoming to the occupants.

One of the fundamental elements of lighting specification is vertical illumination. The various wall-washing techniques create an illuminated space and affect its functionality. Walls with increased illumination and the occupant’s flexibility in controlling the LED wall-washing luminaires can affect visual comfort and the ability to influence the look of their illuminated environment.

Functional wall-washing with linear fixtures

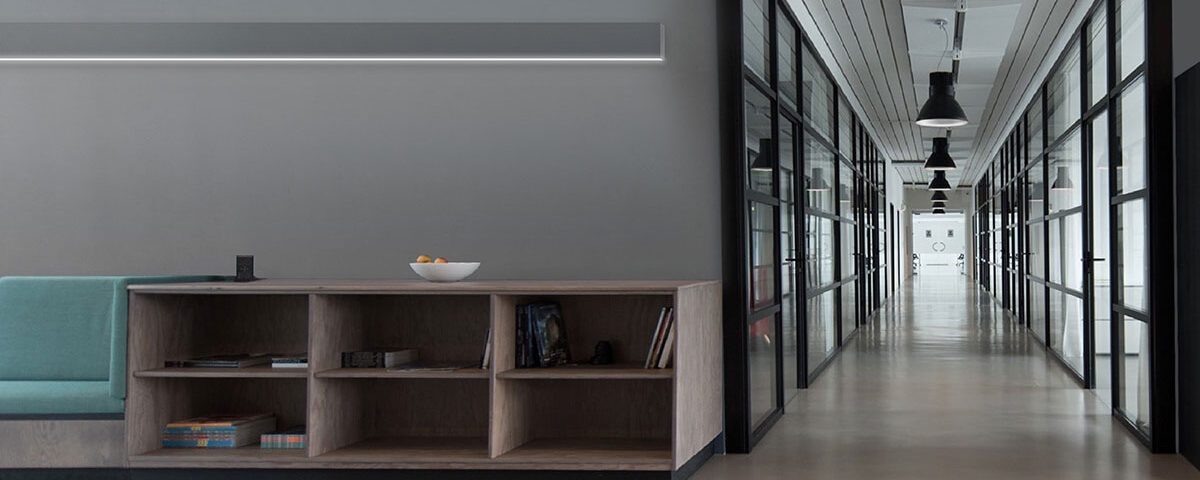

Linear lights, such as LED strips or linear wall washers, provide a continuous, even spread of light to create a smooth, uniform wash across a wall. They’re commonly used in residential and commercial settings for various aesthetic and functional applications.

Like other fixture types, the placement and distance from the wall of the linear fixture will impact the result. Positioning linear lights closer to the wall (around 1–2 feet away) creates a bright, intense wash that emphasizes the wall’s surface. This position is ideal for highlighting texture, like brick or stone. Moving the linear fixture farther away can create a softer, more diffused wash suitable for flat, even walls.

Linear fixtures also provide design flexibility related to the placement of the fixture. If mounted vertically, linear lights can create an even, columnar light wash, accentuating height and architectural features. Horizontally placed fixtures work well to spread light across the entire wall. For larger walls, you can line up multiple fixtures for consistent coverage. The introduction of linear light runs, whether vertical or horizontal, can create a striking visual effect while delivering the necessary practical results.

Linear fixtures may also be installed with various angle and beam spreads, enabling more design options. Directing the light outward from the wall can reduce shadowing at the top or bottom, creating a balanced wash. Linear lights also come in different beam spreads. A wider beam will cover more surface area, while a narrower beam will create a more focused wash, which is excellent for emphasizing certain wall sections.

Types of linear fixtures used in wall-wash designs

Recessed linear lights are hidden or installed into walls or ceilings, allowing for a clean, modern look without visible or protruding fixtures. Surface-mounted linear lights are easier to install where architectural modifications are limited. Suspended linear luminaires are versatile yet elegant options that can be part of the space’s overall design while also providing the desired wall wash application.

Using linear fixtures to wall-wash can dramatically impact the look and feel of a space, transforming a plain wall into a focal point.
